Dickey-John Dickey John Mini GAC PLUS Grain Moisture Tester – MINIGAC1P – Grain Moisture Testers

The WORLD’S MOST ACCURATE Handheld Moisture Tester and the ONLY handheld moisture tester on the market that measures accurate test weight.

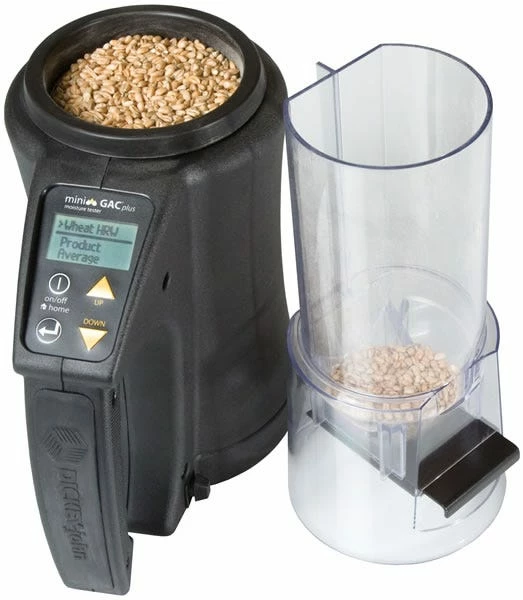

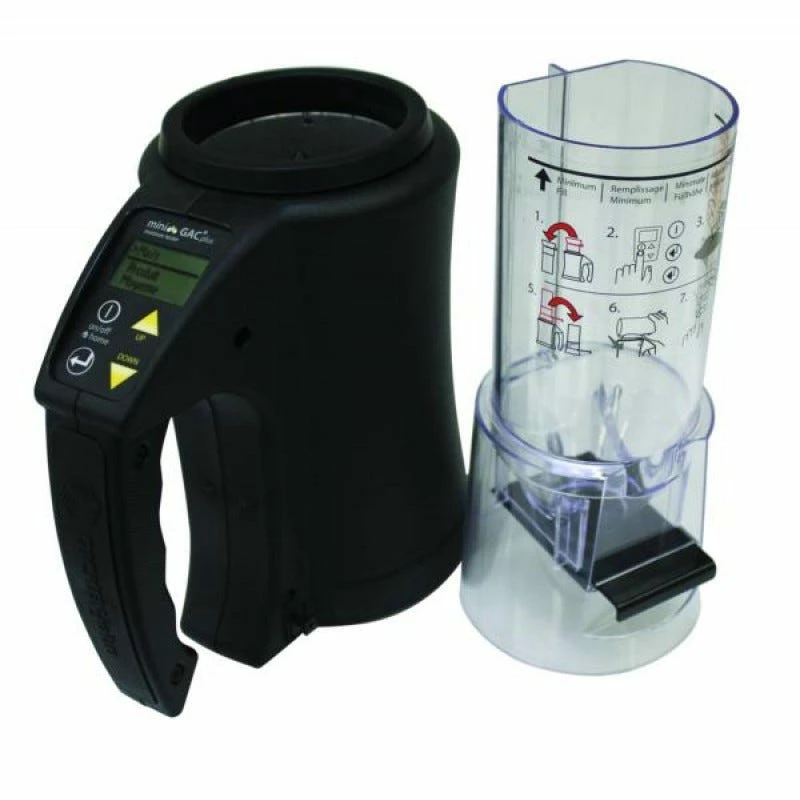

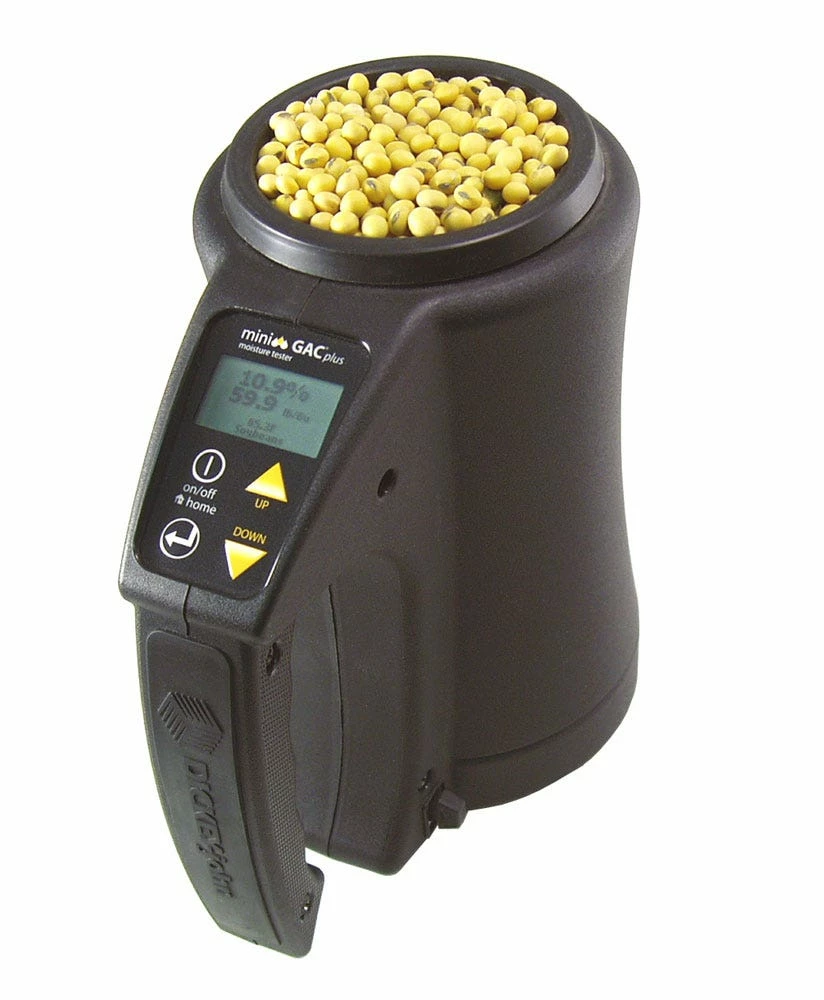

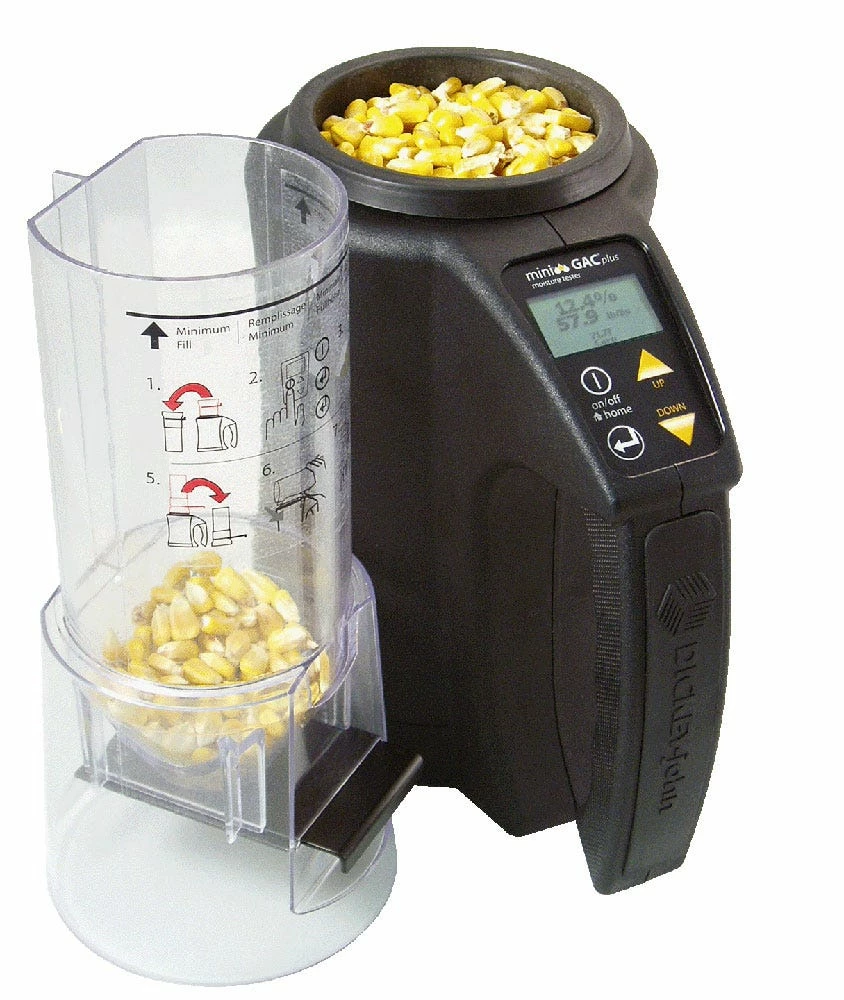

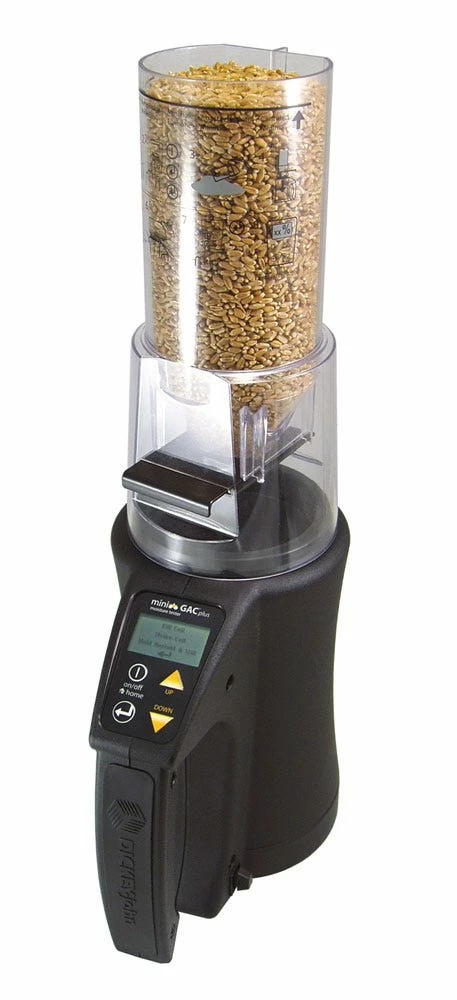

The Dickey John Mini GAC Plus is the preferred moisture tester for the serious farmer. If you aren’t using a moisture tester, you are throwing your profits away. The Mini GAC Plus will measure moisture content and test weight which are the two most important factors for a profitable harvest. If you’re not using a GAC product on the farm to test moisture, you’re losing money—up to $1.42 per bushel of corn. This moisture tester is fast and easy to use and best of all, you canchoose from more than 450 grain calibrations.

Features include:

• Menu-driven operating system
• An internal scale (no pre-weighing)
• USB compatibility for calibration loading
• Used for over 450 grains and products
• Test Weight Read Out
• Automatic temperature compensation

…And NO screw cap which can damage grains, create oily residue, and are cumbersome to use.

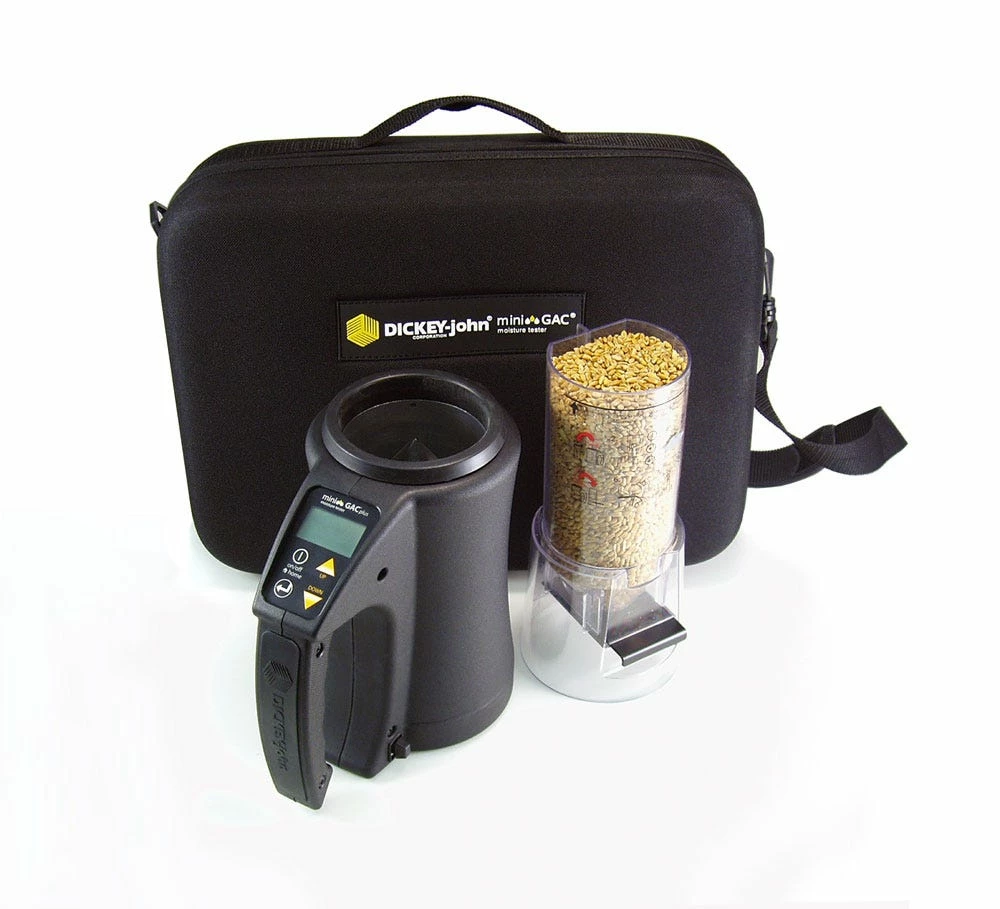

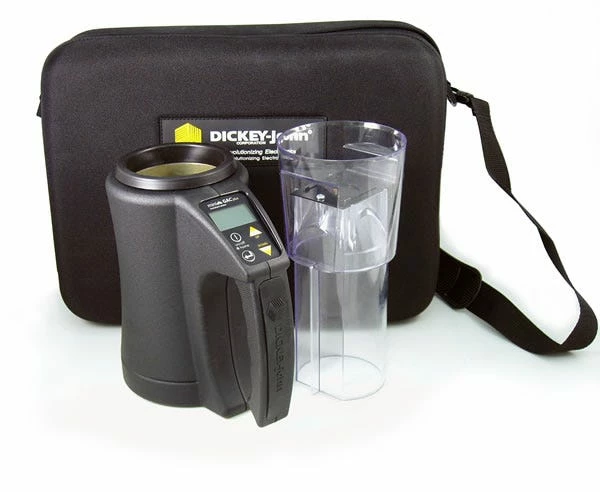

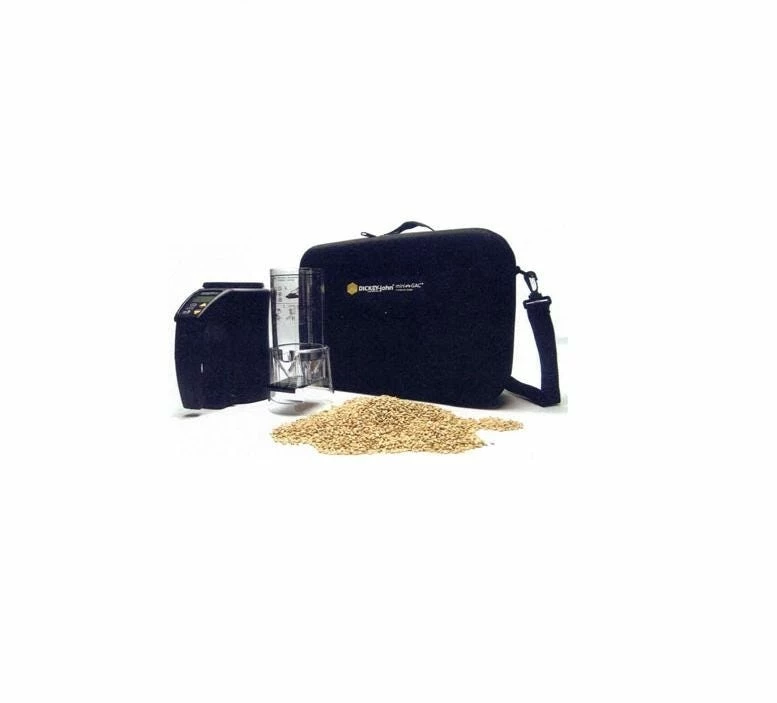

Package for the mini GAC includes:

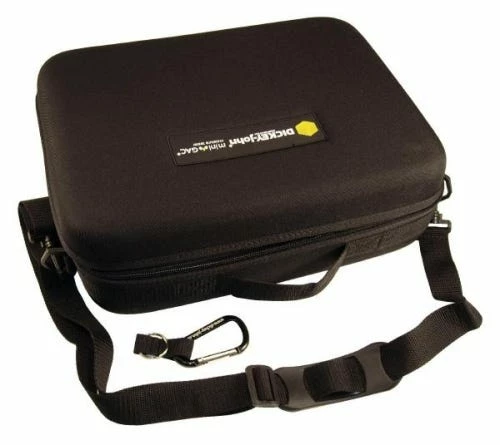

mini GAC, loader, 9 volt battery, carrying case, belt clip, instruction manual, and 1 year manufacturer’s warranty.

Unit Specifications:

Measurement method	capacitance, conductance, internal scale, temperature
Moisture range	5 – 45 % (depending on grain type)
Grain temperature	32 – 122° F (0 – 50° C)
Temperature difference	36° F (20° C) instrument to grain sample
Temperature compensation	automatic
Grain type	whole grain, no sample preparation
Sample size	1 pint (0.47 L)
Display	LCD (106 x 56 pixels)
Analyzer height	* 11.9 in (30.2 cm)
Analyzer width	* 4.8 in (12.2 cm)
Analyzer depth	* 8.3 in (21.1 cm)
Weight (total)	2 lbs 7 oz (1.1 kg)
Measured parameters	moisture, grain temperature and test weight **
Calibrations	20-grain calibrations (choose from over 450 calibrations that are available)

Moisture Measurement Specifications

• Moisture Accuracy: calibrations are based on U.S. Federal Standard
• Moisture Repeatability: 0.2% moisture, depending on grain type in commercial trade range, typical
• Moisture Resolution: 0.1% moisture

Grain Temperature Measurement Specification

• Accuracy: 1.0 Degree F or 0.5 Degree C
• Temperature Resolution: 0.1 Degree F or 0.1 Degree C

Test Weight Specifications

• Repeatability: 0.5 lb/bu in commercial trade range depending on grain type
• Test Weight Resolution: 0.1 lb/bu

Other Specifications

• Operating Temperature: 40 – 113 Degrees F (5-45 Degrees C)
• Humidity: 5-95% non-condensing
• Power: 9V DC battery (installed)
